SIDEWINDER AUSTRALIA
Landcruiser Prado LC150 2010
Dual Battery System
Our already popular Dbi-120 isolator has been upgraded and improved . Starting with
the LC150 Prado it now has an isolator status lamp for the driver, the circuit board has
been improved to allow for larger relays and is now rated at 140A continuous and
400A surge, this improvement has allowed for a driver operated override function for
forced joining of the batteries in emergency situations. (Now in-Stock, See below)
We have a new battery monitor dedicated to this isolator. (Now in-Stock, See below)
The battery trays are now available. (Now in-Stock, See below)
Our already popular Dbi-
been improved to allow for larger relays and is now rated at 140A continuous and
400A surge, this improvement has allowed for a driver operated override function for
forced joining of the batteries in emergency situations. (Now in-
We have a new battery monitor dedicated to this isolator. (Now in-
The battery trays are now available. (Now in-
Accessory Wiring Harness
To make wiring as easy as possible we will be making complete ‘Drop-In’ wiring
harnesses for the LC150.
1) Dual Battery Harness.
2) Fridge and Internal Harness which includes cigar and hella sockets.
3) Caravan Charge cable.
4) Brake Wiring Harness.
To make wiring as easy as possible we will be making complete ‘Drop-
1) Dual Battery Harness.
2) Fridge and Internal Harness which includes cigar and hella sockets.
3) Caravan Charge cable.
4) Brake Wiring Harness.
HID Driving Lamps
1) Our popular HID’s will be supplied with the correct harness and switch to suit the
LC150 so fitting will only take a short time and will be an easy DIY fitment.
1) Our popular HID’s will be supplied with the correct harness and switch to suit the
LC150 so fitting will only take a short time and will be an easy DIY fitment.
AIR Compressor
The ABR-SIDEWINDER compressor has already proven itself in the field and we will
have a mounting kit and wiring harness for the LC150.
The ABR-
Warranty
Our aim is to have customers purchase complete fit outs and those that do will receive
an extended warranty on the products free of charge.
Our aim is to have customers purchase complete fit outs and those that do will receive
an extended warranty on the products free of charge.

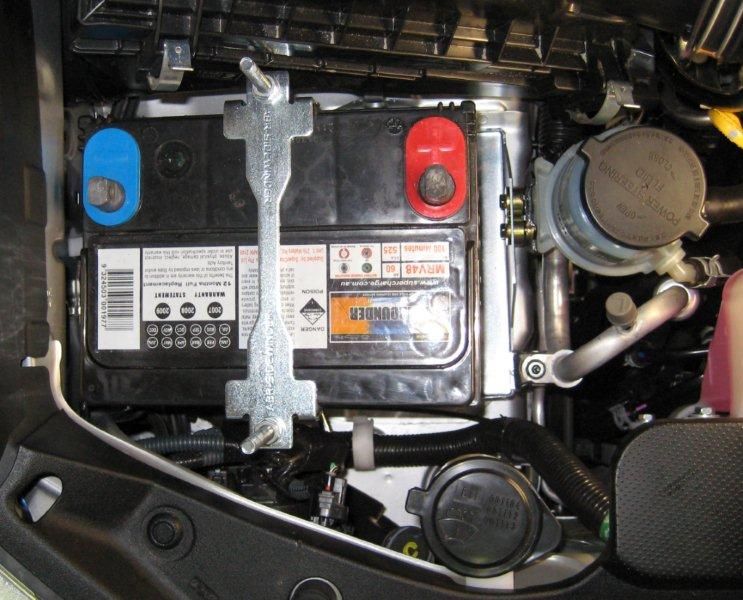

Dual Battery Tray - Main becomes Aux (Option)
Due to size restrictions and air conditioning piping the new 9 ½ inch high cca battery shown is wired as the main
battery, this allows for a large N70 or bigger battery to be fitted to the main battery position as the new aux battery.
Our standard tray suits both petrol and diesel, includes mounting hardware for power steering reservoir.
Full photographic instructions for relocation of air conditioning mounting point and power steering reservoir
make for an easy DIY fitment of the tray in under 30 mins.
Due to size restrictions and air conditioning piping the new 9 ½ inch high cca battery shown is wired as the main
battery, this allows for a large N70 or bigger battery to be fitted to the main battery position as the new aux battery.
Our standard tray suits both petrol and diesel, includes mounting hardware for power steering reservoir.
Full photographic instructions for relocation of air conditioning mounting point and power steering reservoir
make for an easy DIY fitment of the tray in under 30 mins.

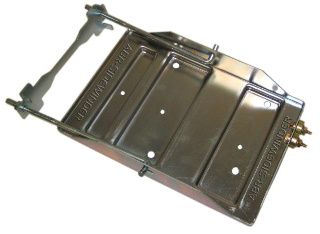

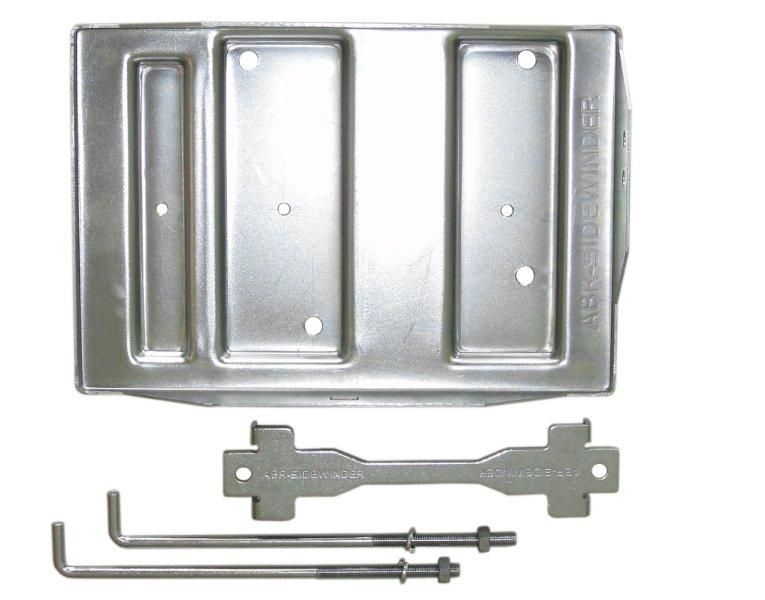

ABR-SIDEWINDER
Prado LC150 Battery Cradle.
Manufactured from 1.8mm nickel
plated steel, supplied with 3mm
nickel plated battery clamp and
8mm J bolts.
Power steering relocation holes are
incorporated in the tray for added
strength and ease of fitment on
petrol models.
The custom designed tray uses
existing holes on the vehicle and
no extra holes need to be drilled.
Air conditioning pipe mounting
bracket modification, C clip and
bolts are included.
Easy DIY fitment.
All mounting hardware included.
Suits Petrol and Diesel Models.
By using a custom battery cradle
you prevent damage to body and
air conditioning parts by properly
securing the battery.
Fully illustrated instructions are
Included for an easy fitment and
Professional finish.
1 Year warranty.
Prado LC150 Battery Cradle.
Manufactured from 1.8mm nickel
plated steel, supplied with 3mm
nickel plated battery clamp and
8mm J bolts.
Power steering relocation holes are
incorporated in the tray for added
strength and ease of fitment on
petrol models.
The custom designed tray uses
existing holes on the vehicle and
no extra holes need to be drilled.
Air conditioning pipe mounting
bracket modification, C clip and
bolts are included.
Easy DIY fitment.
All mounting hardware included.
Suits Petrol and Diesel Models.
By using a custom battery cradle
you prevent damage to body and
air conditioning parts by properly
securing the battery.
Fully illustrated instructions are
Included for an easy fitment and
Professional finish.
1 Year warranty.
$139.95
|
FEATURES |
|
Strong corrosion resistant design |
|
Can be used for auxiliary battery or relocation of starting battery |
|
Mounts to existing holes |
|
Quick and easy to fit |
|
Large range of batteries can be fitted - |
|
Maximum battery size 250mm x 175mm x 240mm (LxWxH) |
|
Average Battery Capacity - |
Dual Battery Isolator (DBi-140R)
Our already popular Dbi-120 isolator has been upgraded and improved (now 140A) .
The ‘R’ series is fitted with a remote stud, this stud is used for 2 main functions.
1) To duplicate the function of the LED
(Optional LED required)
2) To override the isolator for emergency starting from the aux battery
(Optional Push Button required)
The circuit board has been improved to allow for larger relays and is now rated at 140A
continuous and 400A surge. Exterior silkscreen printing and specifications remain
unchanged from the previous model due to time restraints.
We have a new battery monitor dedicated to this isolator. (see below)
Our already popular Dbi-
The ‘R’ series is fitted with a remote stud, this stud is used for 2 main functions.
1) To duplicate the function of the LED
(Optional LED required)
2) To override the isolator for emergency starting from the aux battery
(Optional Push Button required)
The circuit board has been improved to allow for larger relays and is now rated at 140A
continuous and 400A surge. Exterior silkscreen printing and specifications remain
unchanged from the previous model due to time restraints.
We have a new battery monitor dedicated to this isolator. (see below)
Optional Push Button
Optional LED lamp
$79.95
$195.00
Battery Isolator Kit & Cable Set
Complete with battery cables and DBi-140R isolator.
Full instructions included for 2 battery installation options.
Option 1: New Auxillary Battery to drivers side
Option 2: New Starter Battery to drivers side.
Complete with battery cables and DBi-
Full instructions included for 2 battery installation options.
Option 1: New Auxillary Battery to drivers side
Option 2: New Starter Battery to drivers side.
BATTERY MONITOR
The ABR-SIDEWINDER dual battery monitor is now available.
Click on pictures for more info.
The ABR-
Click on pictures for more info.
Instruction Manual
$15.95 Ea
One of a battery’s biggest enemies is heat especially under bonnet temperatures
and radiated heat from the engine.
These simple covers will prolong battery life and keep batteries at safer temperatures.
Velcro adjusting strips allow for fitting to any battery from 9 inch to 13 inch in size.
Electric brake wiring harness, complete with all cables, lugs, breaker and
fully illustrated instructions.
Harness is correct length and fitted with protective tubing.
For passenger side fitment - carpet track.
Complete harness ready to fit, supplied with breaker, anderson plug and cover
fully illustrated instructions.
All lugs are pre-fitted for an easy DIY.
For passenger side fitment - carpet track.
Complete harness ready to fit, supplied with breaker and fully illustrated
instructions.
All lugs are pre-fitted for an easy DIY.
For passenger side fitment - carpet track.
Complete Kit
Harness ready to fit, supplied with breaker and fully illustrated
instructions.
PLUS
All components to fit rear sockets.
1x cigar
1x hella
1x anderson
1x volt meter
For passenger side fitment - carpet track.
Note: Some models have a speaker fitted to the spare pocket so sockets
must be fitted to jack cover.
$105.00 Ea
$175.00 Ea
$125.00 Ea
$225.00 Ea
Cable Lengths
Sample Instructions
Rear Power Outlet Full Kit
Breakers and Harnesses
Prototype No.3
$79.95
Optional Voltage Booster
Optional Voltage Booster
